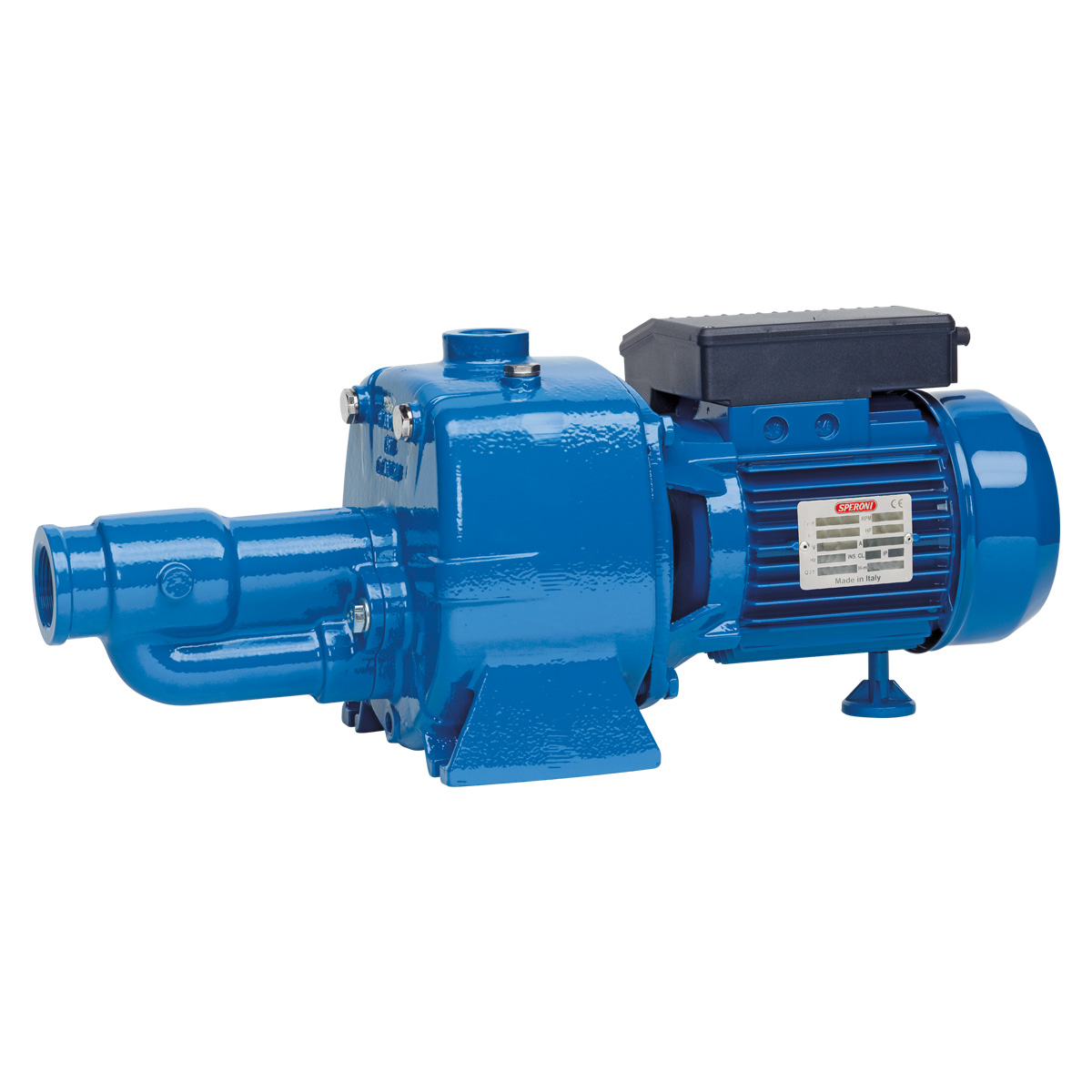

CAM 150/200

CAM 150/200

Selfpriming twin-impeller water pumps with ejector for suction up to 9 mt. A suction up to 35 mt. depth can be allowed by taking the ejector down and connecting it to the pump by means of a double hose and a foot valve. Suitable for civil and industrial purposes and to drain clean, gas mixed water and non-aggressive liquids.

SKU: CAM 150/200
Scarica scheda tecnicaDownload the manual
Limits of use:
- Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 9 mt.
- Continuous duty
Engine:
- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55,sp_potenza_nominale_hp=0.33
Material:
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impellers Noryl
- Diffuser Noryl
- Ejector (P 30): Cast Iron
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
MODEL PHASE NOMINAL POWER POWER CONSUMPTION PERFORMANCE SHOUTS
HP kW kW Q (L/min) H (m) asp. mand.
CAM 150 Single-phase 1.5 1.1 1.5 80 58 1″ 1/2 1″
CAM 200 Single-phase 2 1.5 2.5 100 60 1″ 1/2 1″
CA 150 Three-phase 1.5 1.1 1.5 80 58 1″ 1/2 1″
CA 200 Three-phase 2 1.5 2.5 100 60 1″ 1/2 1″
Applications

Industrial, Residential Civil Home

Manuale

Type of fluid

Clean water

Famiglia

CAM

Prevalenza Massima (m)

60

Portata Massima (L/min)

100
